Team: Huntress Managed Security Information and Event Management (SIEM)
Product: SIEM Agent
Environment: Windows
Summary: This guide explains how to configure Microsoft Windows event log collection WEL for Huntress Managed SIEM, including what the Huntress Agent configures automatically and what you must set via Group Policy or local configuration.

Vendor Information

Vendor	Microsoft
Supported Model Name/Number	Windows Operating System
Supported Software Version(s)	Desktop: Windows 7 and later Server: Windows 2008R2 and later
Collection Method	Windows Event Log
Provider Name	Microsoft-Windows-Security-Auditing Microsoft-Windows-Eventlog
Additional Information	Microsoft Audit Policy Settings Ultimate Windows Security Reference

Configure Windows Event Log Collection (Portal)

Follow these steps in the Huntress Platform to enable or manage Windows Event Log collection for your organizations.

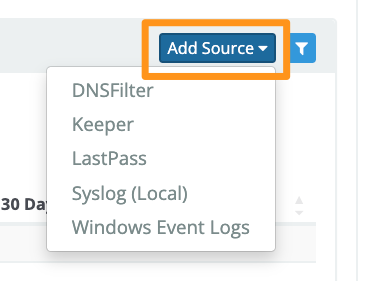

From the Source Management tab under SIEM, click Add Source.
1. Alternately, from Source Management, choose the Categories tab, View Details on the Windows Event Logs sections, then Configure Log Collection. Both options will bring you to the same place.

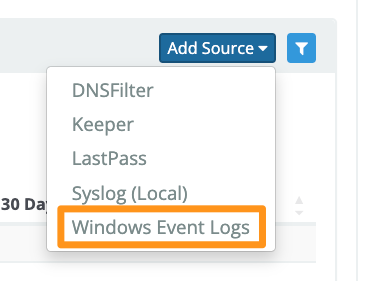

Choose Windows Event Logs > Configure Log Collection tab.

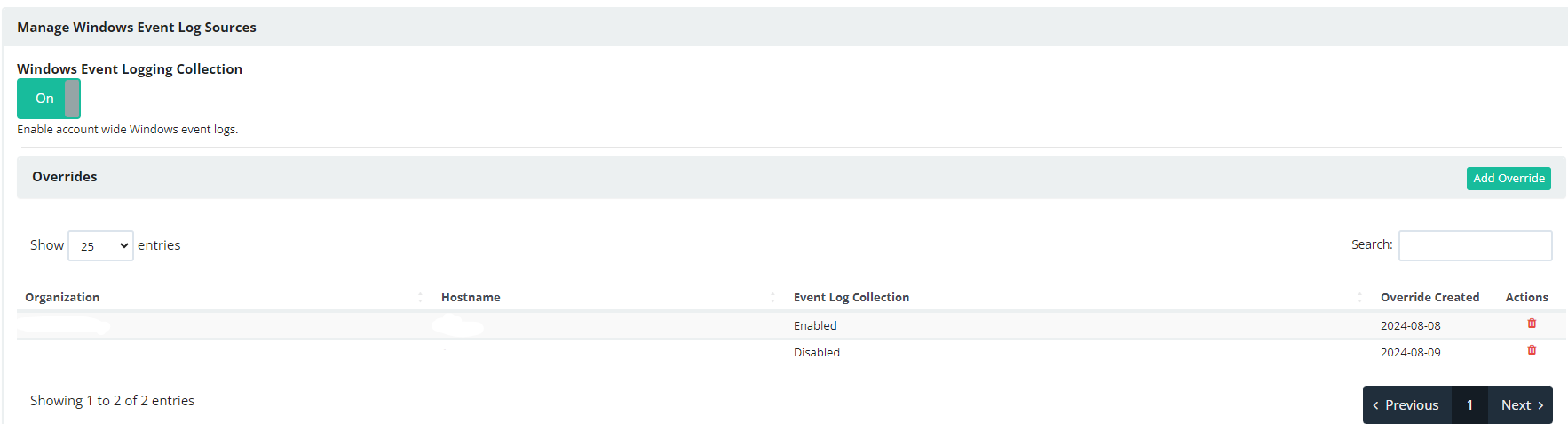

From here, you may opt to set the collection to either be Enabled by Default, or Disabled by Default. This can be done at both the account and organization level.

Account level

Enabled by Default indicates that all endpoints across all organizations will automatically collect Windows event logs.
- To disable an entire single organization, you will need to uncheck the box next to the name of the organization and hit Save. This will stop all endpoints in that organization from syncing.
- If you wish to disable an organization from syncing as a whole, but include select endpoints to continue syncing from that organization, disable the organization, then hit the Edit (Pencil icon) to add select endpoints only. Hit Save.
Disabled by Default indicates that all endpoints across all organizations will not collect Windows Event logs.
- To enable a single organization, check the box next to the name of the organization and hit Save. This will add all endpoints in that organization to the sync.
- To enable a single endpoint, hit the Edit (Pencil icon) to add select endpoints only. Hit Save.

Organization level

Enabled by Default indicates that all endpoints across the organization will automatically collect Windows event logs.
- To disable a single endpoint from syncing you will need to uncheck the box next to the name of the endpoint and hit Save.
Disabled by Default indicates that all endpoints across the organization will not collect Windows Event logs.
- To enable a single endpoint, check the box next to the name of the organization and hit Save. This will add the single endpoint to the sync.

What Huntress Configures Automatically vs What You Must Configure

The Huntress Agent automatically attempts to set Advanced Audit Policy settings on supported endpoints. Huntress does not currently make changes to Security log size/retention or PowerShell ModuleLogging/ScriptBlockLogging settings. Configure those via Group Policy or local policy if required. See below for details.

If a Group Policy Object (GPO) is present, it will always take precedence over any local or agent-applied settings. If an existing GPO resets these settings to a different state, Huntress will trigger an escalation. If you want to keep your GPO-enforced settings, simply close the escalation; otherwise, update your GPO to match the recommended baseline below.

Recommended Baseline Hardening (Manual or GPO Required)

Security Log Size and Retention

In addition to audit policy, you must define the Windows Security Event Log settings. These are recommended baseline values and are not set by the Huntress Agent:

Policy	Setting
Maximum security log size	512000
Retention method for security log	Overwrite events as needed

Huntress does not set or enforce the Security log maximum size (512000 KB) or retention mode. Apply these via GPO or local configuration.

PowerShell Logging

Huntress does not set or enforce PowerShell ModuleLogging or ScriptBlockLogging registry keys. If you require these for compliance or investigative visibility, enable them via GPO or configuration management tooling.

HKLM\SOFTWARE\Wow6432Node\Policies\Microsoft\Windows\PowerShell\
ModuleLogging → EnableModuleLogging = 1
ModuleLogging\ModuleNames → * = *
ScriptBlockLogging → EnableScriptBlockLogging = 1

Get-EventLog -List

Managed Locally (Non-Domain Joined)

If the endpoint is not domain-joined, apply the configuration individually to each server or workstation. Use the following commands as an administrator:

Security Log Size (PowerShell):

Limit-EventLog -LogName Security -MaximumSize 512000KB -OverflowAction OverwriteAsNeeded

Advanced Audit Policy (CMD):

auditpol /set /subcategory:{0CCE923F-69AE-11D9-BED3-505054503030},{0CCE9242-69AE-11D9-BED3-505054503030},{0CCE9240-69AE-11D9-BED3-505054503030},{0CCE9236-69AE-11D9-BED3-505054503030},{0CCE9238-69AE-11D9-BED3-505054503030},{0CCE9237-69AE-11D9-BED3-505054503030},{0CCE9235-69AE-11D9-BED3-505054503030},{0CCE923B-69AE-11D9-BED3-505054503030},{0CCE9215-69AE-11D9-BED3-505054503030},{0CCE9243-69AE-11D9-BED3-505054503030},{0CCE921C-69AE-11D9-BED3-505054503030},{0CCE9244-69AE-11D9-BED3-505054503030},{0CCE9224-69AE-11D9-BED3-505054503030},{0CCE921F-69AE-11D9-BED3-505054503030},{0CCE9227-69AE-11D9-BED3-505054503030},{0CCE9245-69AE-11D9-BED3-505054503030},{0CCE9232-69AE-11D9-BED3-505054503030},{0CCE9234-69AE-11D9-BED3-505054503030},{0CCE9228-69AE-11D9-BED3-505054503030},{0CCE9214-69AE-11D9-BED3-505054503030},{0CCE9212-69AE-11D9-BED3-505054503030} /success:enable /failure:enable
auditpol /set /subcategory:{0CCE923A-69AE-11D9-BED3-505054503030},{0CCE9248-69AE-11D9-BED3-505054503030},{0CCE923C-69AE-11D9-BED3-505054503030},{0CCE9216-69AE-11D9-BED3-505054503030},{0CCE921B-69AE-11D9-BED3-505054503030},{0CCE922F-69AE-11D9-BED3-505054503030},{0CCE9230-69AE-11D9-BED3-505054503030},{0CCE9231-69AE-11D9-BED3-505054503030},{0CCE9233-69AE-11D9-BED3-505054503030},{0CCE9210-69AE-11D9-BED3-505054503030},{0CCE9211-69AE-11D9-BED3-505054503030} /success:enable
auditpol /set /subcategory:{0CCE9217-69AE-11D9-BED3-505054503030},{0CCE9226-69AE-11D9-BED3-505054503030} /failure:enable

Active Directory Logging

To monitor logging changes, the following registry settings will be automatically updated on your SIEM Enabled domain controller endpoints:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\NTDS\Diagnostics\Field Engineering - 5
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\NTDS\Parameters\Search Time Threshold (msecs)
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\NTDS\Parameters\Expensive Search Results Threshold
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\NTDS\Parameters\Inefficient Search Results Threshold

Verification

Verify Audit Policy Settings:

Use the following commands to verify that the Advanced Audit Policy has been applied correctly and that the Security log is active with the appropriate settings.

auditpol /get /category:*

Verify Event Log Status:

Get-EventLog -List

Recommended Advanced Audit Policy Settings

Category	Subcategory	Audit Setting	Notes
Account Logon	Audit Credential Validation	Success and Failure
Account Logon	Audit Kerberos Authentication Service	Success and Failure
Account Logon	Audit Kerberos Service Ticket Operations	Success and Failure
Account Logon	Audit Other Account Logon Events	No Auditing	No events are generated within this category.
Account Management	Audit Application Group Management	No Auditing	All events related to deprecated Authorization Manager product.
Account Management	Audit Computer Account Management	Success and Failure
Account Management	Audit Distribution Group Management	Success and Failure
Account Management	Audit Other Account Management Events	Success	No failure events are generated.
Account Management	Audit Security Group Management	Success and Failure
Account Management	Audit User Account Management	Success and Failure
Detailed Tracking	Audit DPAPI Activity	No Auditing	Informational events for troubleshooting DPAPI activity.
Detailed Tracking	Audit PNP Activity	Success	No failure events are generated.
Detailed Tracking	Audit Process Creation	No Auditing	All process activity is covered by the Huntress EDR. If not using the Huntress EDR, set to Success.
Detailed Tracking	Audit Process Termination	No Auditing	All process activity is covered by the Huntress EDR.
Detailed Tracking	Audit RPC Events	No Auditing	No events generated within this category.
Detailed Tracking	Audit Token Right Adjustment	No Auditing	Starting in Windows 10, events are produced at an extreme rate diluting the value provided.
DS Access	Audit Detailed Directory Service Replication	No Auditing	Informational events for troubleshooting AD replication.
DS Access	Audit Directory Service Access	Success and Failure
DS Access	Audit Directory Service Changes	Success	No failure events are generated.
DS Access	Audit Directory Service Replication	No Auditing	Informational events for troubleshooting AD replication.
Logon/Logoff	Audit Account Lockout	Failure	No success events are generated.
Logon/Logoff	Audit User/Device Claims	No Auditing	Informational events. No extra value is provided beyond monitoring authentication activity.
Logon/Logoff	Audit Group Membership	No Auditing	Informational events. Capturing full group membership data at the start of every session is excessive and is best obtained on an as needed basis.
Logon/Logoff	Audit IPsec Extended Mode	No Auditing	Informational events for troubleshooting IPsec tunnels.
Logon/Logoff	Audit IPsec Main Mode	No Auditing	Informational events for troubleshooting IPsec tunnels.
Logon/Logoff	Audit IPsec Quick Mode	No Auditing	Informational events for troubleshooting IPsec tunnels.
Logon/Logoff	Audit Logoff	Success	No failure events are generated.
Logon/Logoff	Audit Logon	Success and Failure
Logon/Logoff	Audit Network Policy Server	Success and Failure
Logon/Logoff	Audit Other Logon/Logoff Events	Success and Failure
Logon/Logoff	Audit Special Logon	Success	No failure events are generated.
Object Access	Audit Application Generated	No Auditing	All events related to deprecated Authorization Manager product.
Object Access	Audit Certification Services	No Auditing	Set to Success and Failure if using Microsoft Certificate Services.
Object Access	Audit Detailed File Share	Success and Failure
Object Access	Audit File Share	Success and Failure
Object Access	Audit File System	No Auditing	Event generation is dependent on configuring explicit System Access Control Lists (SACLs). Due to this extra configuration, and ability to detect malicious behavior through other means, it is not recommended to enable these events.
Object Access	Audit Filtering Platform Connection	Failure	Connection success logs generate at a high volume, especially in a domain environment. Value provided from host firewall logs are available through other mechanisms.
Object Access	Audit Filtering Platform Packet Drop	No Auditing	Generates a high volume of events with limited value beyond what is provided through connection monitoring.
Object Access	Audit Handle Manipulation	No Auditing
Object Access	Audit Kernel Object	Success and Failure	Must have “Audit the access of global system objects” disabled to prevent significant event generation.
Object Access	Audit Other Object Access Events	Success and Failure
Object Access	Audit Registry	No Auditing	Event generation is dependent on configuring explicit System Access Control Lists (SACLs). Due to this extra configuration, and ability to detect malicious behavior through other means, it is not recommended to enable these events.
Object Access	Audit Removable Storage	Success and Failure
Object Access	Audit SAM	No Auditing	Informational events. The type of data contained in these events are available through Account Management events.
Object Access	Audit Central Access Policy Staging	No Auditing	Informational events for troubleshooting Dynamic Access Control policies.
Policy Change	Audit Audit Policy Change	Success	No failure events are generated.
Policy Change	Audit Authentication Policy Change	Success	No failure events are generated.
Policy Change	Audit Authorization Policy Change	Success	No failure events are generated.
Policy Change	Audit Filtering Platform Policy Change	Success	No failure events are generated.
Policy Change	Audit MPSSVC Rule-Level Policy Change	Success and Failure
Policy Change	Audit Other Policy Change Events	Success and Failure
Privilege Use	Audit Non Sensitive Privilege Use	No Auditing	Informational event that will generate in high volume and provide little value.
Privilege Use	Audit Other Privilege Use Events	No Auditing	Informational events for troubleshooting Transaction Manager.
Privilege Use	Audit Sensitive Privilege Use	Success and Failure
System	Audit IPsec Driver	No Auditing	Information events for troubleshooting the IPsec service.
System	Audit Other System Events	Success and Failure
System	Audit Security State Change	Success	No failure events are generated.
System	Audit Security System Extension	Success	No failure events are generated.
System	Audit System Integrity	Success and Failure

Troubleshooting Windows Logging Configuration

See our dedicated article here for advanced Windows configuration and troubleshooting steps around enforcing logging standards.

Huntress Managed SIEM will notify you proactively through a Platform Action notification when a device is detected as not having the proper Windows audit logging enforcement. However you can review the state of your Windows device configurations at anytime from your Windows Event Log source page under Source Management.

This page includes all affected Windows sources, and guidance on how to remediate their configurations.

In addition to the notifications, when devices are not configured properly, a banner will appear on the Source Management page to notify of you the misconfigured Windows devices.

Example Log Messages

Below are sample Windows Security Event Log messages for reference.

Logon Event - Event ID 4624

<?xml version='1.0'?>
<Event xmlns='http://schemas.microsoft.com/win/2004/08/events/event'>
  <System>
    <Provider Name='Microsoft-Windows-Security-Auditing' Guid='{54849625-5478-4994-A5BA-3E3B0328C30D}'/>
    <EventID>4624</EventID>
    <Version>2</Version>
    <Level>0</Level>
    <Task>12544</Task>
    <Opcode>0</Opcode>
    <Keywords>0x8020000000000000</Keywords>
    <TimeCreated SystemTime='2015-11-12T00:24:35.079785200Z'/>
    <EventRecordID>211</EventRecordID>
    <Correlation ActivityID='{00D66690-1CDF-0000-AC66-D600DF1CD101}'/>
    <Execution ProcessID='716' ThreadID='760'/>
    <Channel>Security</Channel>
    <Computer>workstation1</Computer>
    <Security/>
  </System>
  <EventData>
    <Data Name='SubjectUserSid'>S-1-5-18</Data>
    <Data Name='SubjectUserName'>workstation1$</Data>
    <Data Name='SubjectDomainName'>workstation1</Data>
    <Data Name='SubjectLogonId'>0x3e7</Data>
    <Data Name='TargetUserSid'>S-1-5-21-1377283216-344919071-3415362939-500</Data>
    <Data Name='TargetUserName'>user1</Data>
    <Data Name='TargetDomainName'>workstation1</Data>
    <Data Name='TargetLogonId'>0x8dcdc</Data>
    <Data Name='LogonType'>2</Data>
    <Data Name='LogonProcessName'>User32</Data>
    <Data Name='AuthenticationPackageName'>Negotiate</Data>
    <Data Name='WorkstationName'>workstation1</Data>
    <Data Name='LogonGuid'>{00000000-0000-0000-0000-000000000000}</Data>
    <Data Name='TransmittedServices'>-</Data>
    <Data Name='LmPackageName'>-</Data>
    <Data Name='KeyLength'>0</Data>
    <Data Name='ProcessId'>0x44c</Data>
    <Data Name='ProcessName'>C:\\Windows\\System32\\svchost.exe</Data>
    <Data Name='IpAddress'>127.0.0.1</Data>
    <Data Name='IpPort'>0</Data>
    <Data Name='ImpersonationLevel'>%%1833</Data>
    <Data Name='RestrictedAdminMode'>-</Data>
    <Data Name='TargetOutboundUserName'>-</Data>
    <Data Name='TargetOutboundDomainName'>-</Data>
    <Data Name='VirtualAccount'>%%1843</Data>
    <Data Name='TargetLinkedLogonId'>0x0</Data>
    <Data Name='ElevatedToken'>%%1842</Data>
  </EventData>
</Event>

Member Added to Local Group - Event ID 4732

<Event xmlns='http://schemas.microsoft.com/win/2004/08/events/event'>
  <System>
    <Provider Name='Microsoft-Windows-Security-Auditing' Guid='{54849625-5478-4994-A5BA-3E3B0328C30D}' />
    <EventID>4732</EventID>
    <Version>0</Version>
    <Level>0</Level>
    <Task>13826</Task>
    <Opcode>0</Opcode>
    <Keywords>0x8020000000000000</Keywords>
    <TimeCreated SystemTime='2015-08-19T03:02:38.563110400Z' />
    <EventRecordID>174856</EventRecordID>
    <Correlation />
    <Execution ProcessID='512' ThreadID='1092' />
    <Channel>Security</Channel>
    <Computer>hostname1</Computer>
    <Security />
  </System>
  <EventData>
    <Data Name='MemberName'>CN=user1,OU=Users,DC=domain,DC=com</Data>
    <Data Name='MemberSid'>S-1-5-21-3457937927-2839227994-823803824-500</Data>
    <Data Name='TargetUserName'>Group01</Data>
    <Data Name='TargetDomainName'>domainname</Data>
    <Data Name='TargetSid'>S-1-5-21-3457937927-2839227994-823803824-6605</Data>
    <Data Name='SubjectUserSid'>domainname\admin</Data>
    <Data Name='SubjectUserName'>admin</Data>
    <Data Name='SubjectDomainName'>domainname</Data>
    <Data Name='SubjectLogonId'>0x3031e</Data>
    <Data Name='PrivilegeList'>-</Data>
  </EventData>
</Event>

Collecting Microsoft Windows Event Logs (WEL)

In this article

Vendor Information

Configure Windows Event Log Collection (Portal)

Account level

Organization level

What Huntress Configures Automatically vs What You Must Configure

Recommended Baseline Hardening (Manual or GPO Required)

Security Log Size and Retention

PowerShell Logging

Active Directory Logging

Verification

Recommended Advanced Audit Policy Settings

Troubleshooting Windows Logging Configuration

Example Log Messages

In this article

Vendor Information

Configure Windows Event Log Collection (Portal)

Account level

Organization level

What Huntress Configures Automatically vs What You Must Configure

Recommended Baseline Hardening (Manual or GPO Required)

Security Log Size and Retention

PowerShell Logging

Active Directory Logging

Verification

Recommended Advanced Audit Policy Settings

Troubleshooting Windows Logging Configuration

Example Log Messages

Related articles
